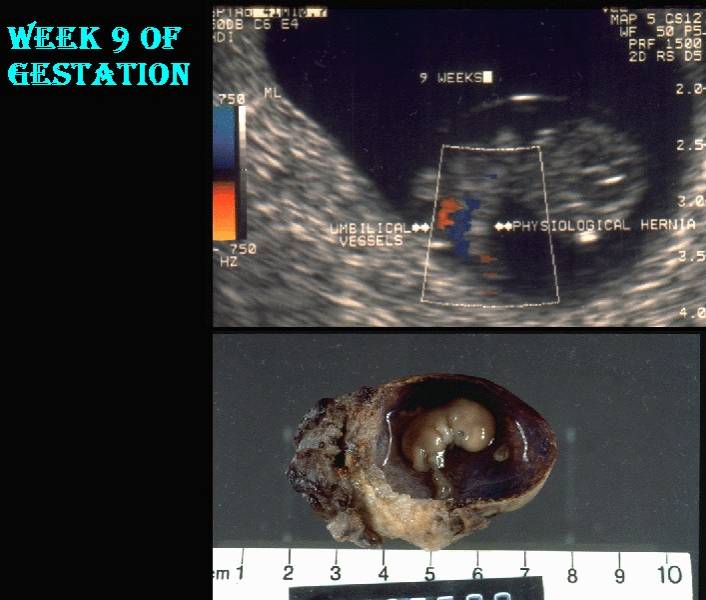

WEEK 9 OF GESTATION |

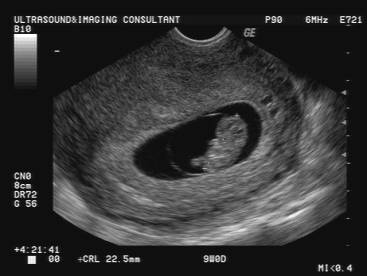

- CRL = 20mm.
|
|

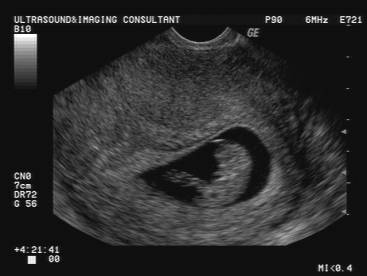

Amnion and Yolk
sac – normal video at 9.5 weeks of gestation.
|
|
|
|
|
|
- Rapid changes occur in embryo.
- Spinal canal can be seen as two parallel lines.
- Very early embryonic movement.
- Sites of definitive placenta and attachment of umbilical cord can be identified.
- Amnion clearly seen.
|
|
|
|
|

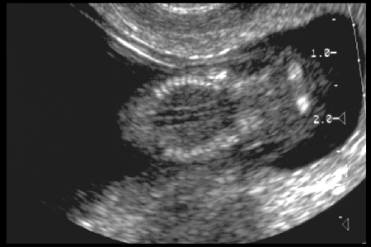

Developing fetal spine |
|
|
|

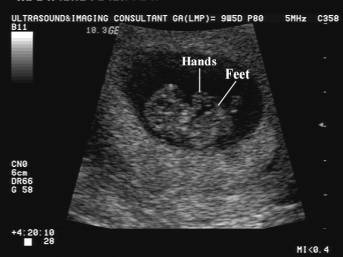

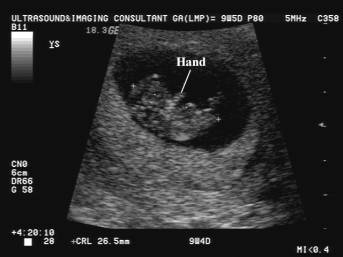

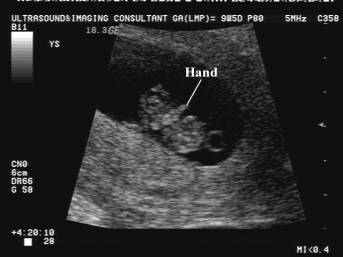

- Limb buds are well seen projecting 90° to the fetal body.
- Anterior and posterior contours can be well seen and derivations from the normal can be identified e.g. nuchal thickening or translucencies.
- CNS:
- Diencephalon and its cavity, third ventricle, hemispheres and their cavity, lateral ventricle and aqueduct become visible.
- Cerebellum can be demonstrated for the first time (visible in all embryo's after 10 weeks 3 days).
|

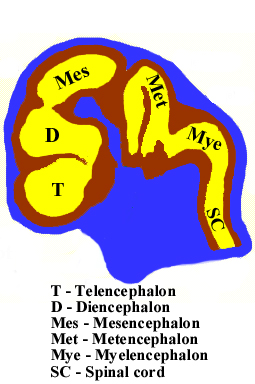

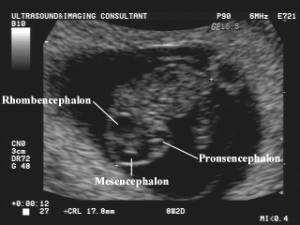

Three primary brain vesicles (5-6 wks menstrual age) |
Five secondary brain vesicles (6-7 wks menstrual age) |
Developed brain |
|
Forebrain (Pronsencephalon) |
Telencephalon (craniad to
optic vesicles) Diencephalon
(caudad to optic vesicles) |
Cerebral hemispheres (lateral ventricles) Pineal gland, thalamus, hypothalamus,
pituitary stalk, third ventricle. |
|
Midbrain (Mesencephalon) |
Mesencephalon |
Superior and inferior colliculi,
aqueduct of sylvius (connecting third and fourth
ventricle) |
|
Hindbrain (Rhombencephalon) |
Metencephalon Myelencephalon |
Cerebellum, pons,
superior part of fourth ventricle Medulla oblongata, inferior part of
fourth ventricle, central canal of medulla. |
|
|
|
|
