NORMAL VALUES FOR THE NUCHAL TRANSLUCENCY

AND THE TECHNIQUE FOR MEASUREMENT

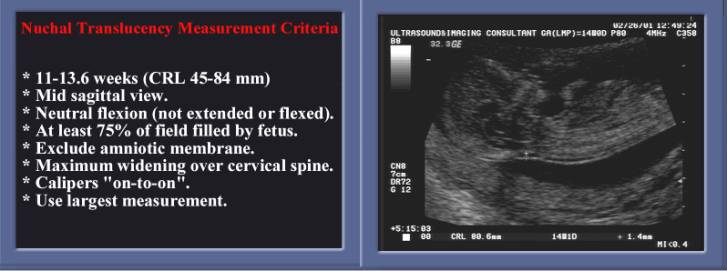

• Mid-sagittal plane (plane used for measuring CRL).
• Hypoechoic / anechoic region between the skin and soft tissues of the back of the fetal neck.
• Measure the translucency at it's greatest dimension from the outer edge of the soft tissue to the inner edge of the nuchal membrane. i.e. from the inner border of the two white lines.
  If measurements between the upper and lower portions are different, measure the minimum value (the larger value is due to mechanical obstruction from the cord around the fetal neck).

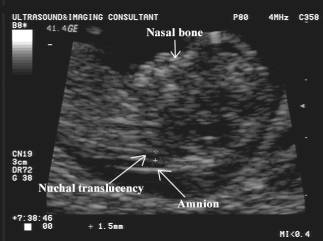

• Care must be taken to distinguish between fetal skin and amnion because, at this gestation, both structures appear as thin membranes. This is achieved by waiting for spontaneous fetal movement away from the amniotic membrane or by manually bouncing the fetus off the amnion.

• Enlarge the image until it nearly fills the screen (>75% of screen).
• Some authors recommend measuring the nuchal thickness twice and averaging the values (1), while others advocate measuring it three times and using the largest value for risk assessment (2). Measure between 11 weeks and 14 weeks. The minimum fetal crown–rump length should be 45mm and the maximum 84mm. The success rate for taking a measurement at this gestation is 98–100%, falling to 90% at 14 weeks; from 14 weeks onwards, the fetal position (vertical) makes it more difficult to obtain measurements^.
• Should be measured in the neutral position. On the average, the extended nuchal translucency is 0.62 mm greater than the neutral value, while in the flexed position it is on the average 0.4 mm or less than in the neutral position (3).

• The umbilical cord may be round the fetal neck in 5–10% of cases and this finding may produce a falsely increased nuchal translucency (may add 0.8mm to the measurement). In such cases, the measurements of nuchal translucency above and below the cord are different and, in the calculation of risk, it is more appropriate to use the smaller measurement.

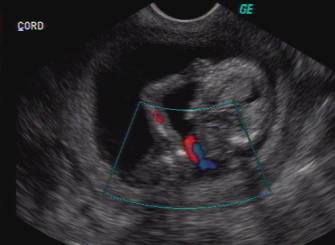

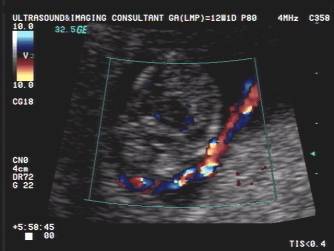

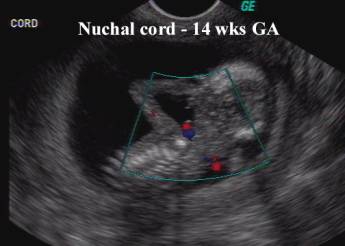

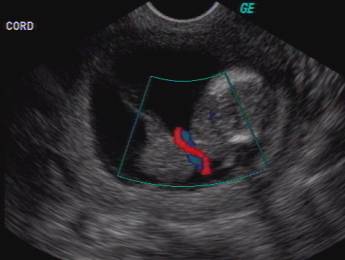

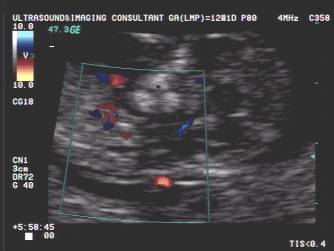

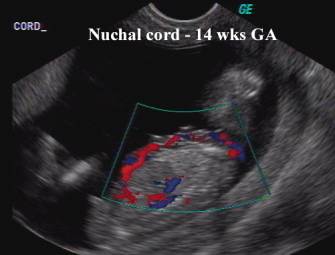

Nuchal Cord Note the different thickness of the nuchal translucency above and below the nuchal cord

• Normal thickness:
• All fetuses develop a measurable nuchal translucency at some point in the first trimester.
• Thickness of the translucency varies with gestational age:
• Peak thickness at 12-13 weeks (in 75% of fetuses).

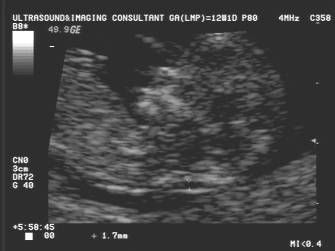

• At 12-13 weeks the 50th percentile thickness
  = 1.7mm.
• At 12-13 weeks the 95th percentile thickness
  = 2.8mm.
• Most authors use a thickness of ³3 mm to define abnormal (some authors use 2.5mm).
• Thickness is independent of maternal age.
• There is a low inter and intra-observer variability. A recent study demonstrated that, after an initial measurement, the second one made by the same (intra-) observer or another (inter-) observer varies from the first by less than 0.54mm and 0.62mm, respectively in 95% of the cases. The study also demonstrated that the caliper placement repeatability was similar to the intra-observer and inter-observer repeatability i.e. a large part of the variation in measurements can be accounted for by the placement of the calipers rather than the generation of the image. Subsequent studies have reported that the intra-observer and inter-observer differences in measurements were less than 0.5mm in 95% of cases.

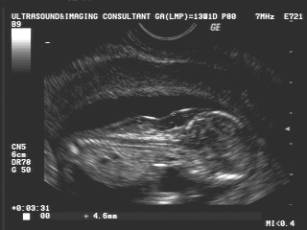

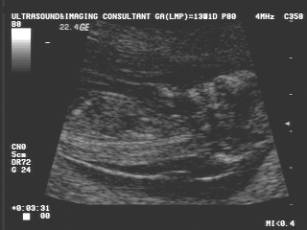

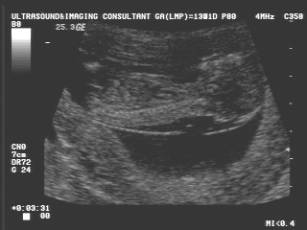

Increased Nuchal Tanslucency

REFERENCES

1. Panyada PP, Altman D, Brizot ML et.al. Repeatability of measurement of fetal nuchal translucency thickness. Ultrasound Obstet Gynecol 1995;5:337-340.
2. Malone FD, D'Alton ME. Fetal nuchal fold translucency screening. Contemporary OB-GYN 1998;43:117-131.
3. Whitlow BJ, Chatzipapas I, Economides DL. The effect of fetal neck position on nuchal translucency measurements. Br J Obstet Gynaecol 1998;105:872-876.
