ULTRASOUND OF PLEURAL
FLUID COLLECTIONS |

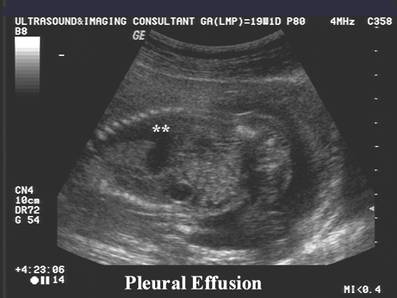

- Anechoic space located peripherally within the thoracic cavity, between the inner chest wall and fetal lung.

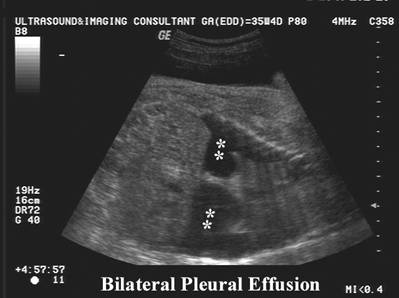

- Unilateral or bilateral.
Unilateral
|
Bilateral
|
Primary
|
Secondary
|
|
|
|
|
|
|
Isolated
Usually associated with an
underlying structural anomaly: ·
pulmonary lymphangiectasia ·
cystic adenomatoid malformation of the lung ·
bronchopulmonary sequestration ·
diaphragmatic hernia ·
chest wall hamartoma ·
pulmonary vein atresia |

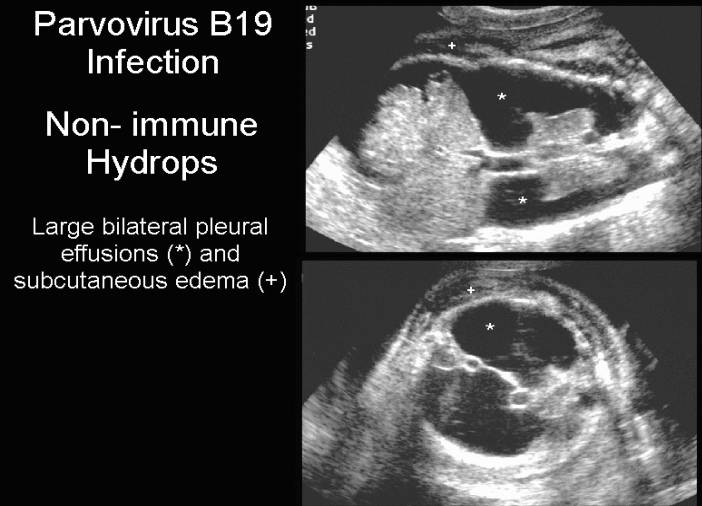

Associated with
other manifestations of hydrops
·
subcutaneous skin edema ·
pericardial effusion ·
ascites |
|
|
|
|
|
|
- Mild = rim of fluid does not completely surround the lung (1), and is found more commonly in the lung bases.
- Moderate = rim of fluid surrounds the lung but less than half of the hemithorax without mediastinal shift.

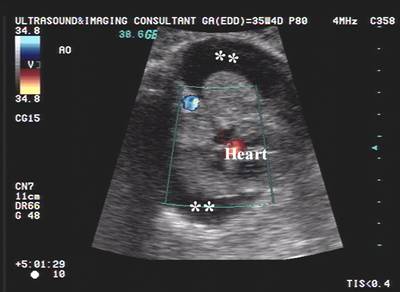

- Severe = fluid filled more than half of the hemithorax ± mediastinal shift in the case of a unilateral hydrothorax.
|
|
|
|

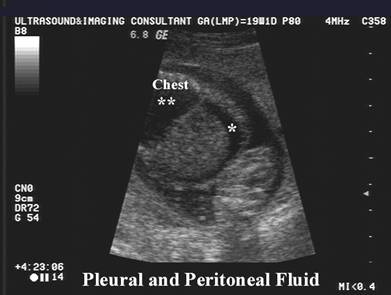

Video clip of
Pleural Effusion & Ascites
|
|
|
|
|
|

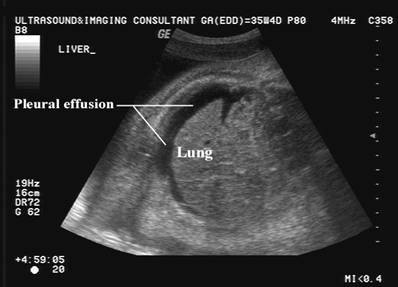

- Partial lung collapse (usually retain their normal shape).
- Hypoplastic lung (may appear as small echogenic masses on either side of the heart) (1).
- ± Mediastinal shift.
- ± Cardiac compression.
- ± Inversion of the diaphragm.
- Other features of fetal hydrops.
- ascites.
- pericardial effusion.
- subcutaneous edema.
- polyhydramnios.
- placental enlargement.
DIFFERENTIAL
DIAGNOSIS
|
The presence of significant septations or solid elements within the fluid collection
suggests an alternative diagnosis such as diaphragmatic hernia, cystic
adenomatoid malformation or bronchopulmonary sequestration.
REFERENCES
|
- Bovicelli L, Rizzo N, Orsini LF et.al. Ultrasonic real time diagnosis of fetal hydrothorax and lung hypoplasia. J Clin Ultrasound 1981;9:253-254.
