ULTRASOUND OF EBSTEIN’S ANOMALY

  • Tricuspid valve

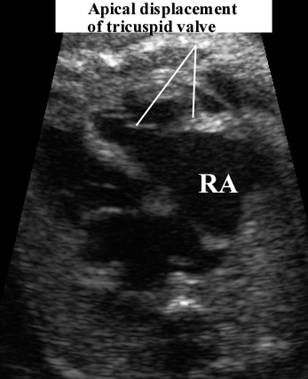

    • Apical displacement of the septal leaflet. This is probably the most reliable diagnostic sign.
    • Posterior leaflet usually displaced apically but the degree of displacement is variable.
    • Anterior leaflet is not displaced and may be normal or large and redundant ("snail-like appearance").
    • Small mobile parts of the leaflets lie deep in the RV.
    • The above changes result in atrialization of the inflow portion of the RV (there may be little or no myocardium like Uhl's anomaly and functionally it behaves like the right atrium).
    • Tricuspid incompetence may be present as only small parts of the valve cusps are free to move.
    • Tricuspid dysplasia ranges from mild to severe, as the valve is either thickened or nodular.
    • Tricuspid stenosis may result from thickened chordae and abnormal "linear" attachment between the valve cusps and trabeculae of the right ventricle, tethering the leaflet to the ventricular wall.
    • Tricuspid atresia may be present in the most severe form (imperforate type of Ebstein's anomaly).

·         Right atrium - usually massively enlarged.

·         Right ventricle - usually dilated with a normal myocardium. RV dysplasia may occur (RV dilatation, decreased wall thickness and dyskinesia).

·         Interventricular septum - The large RV may result in paradoxical motion of the interventricular septum.

     This may cause compression of the LV and be associated with a poor outcome.

·         Fetal hydrops. +

·         Arrhythmia - especially SVT.

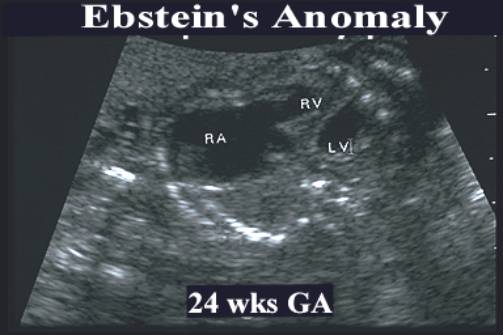

Ebstein’s Anomaly

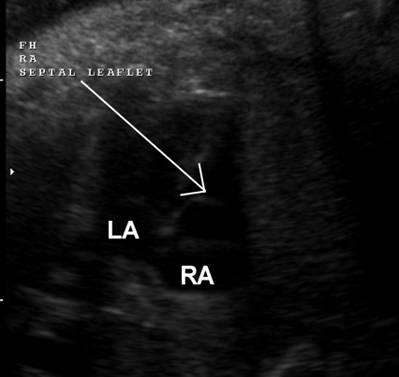

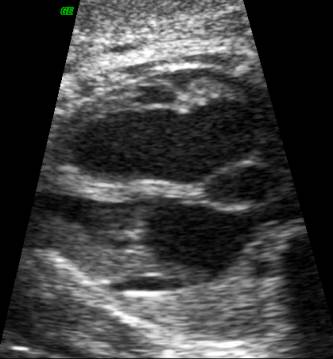

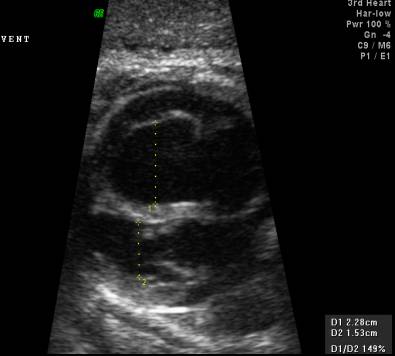

  • Massive Cardiomegaly and left cardiac axis deviation.
  • Large RA

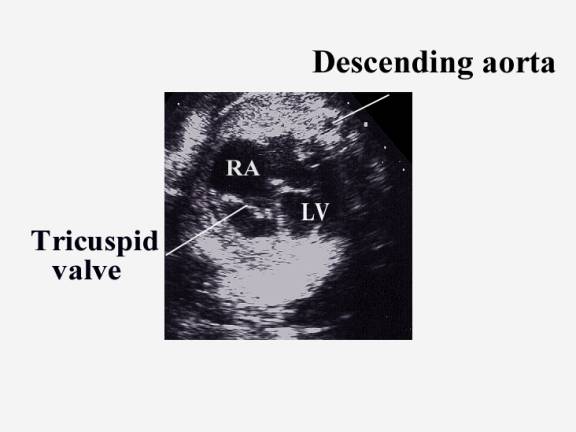

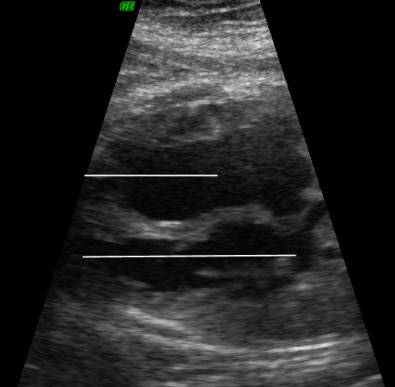

  • Inferiorly displaced tricuspid valve resulting in atrialization of the inflow portion of RV.

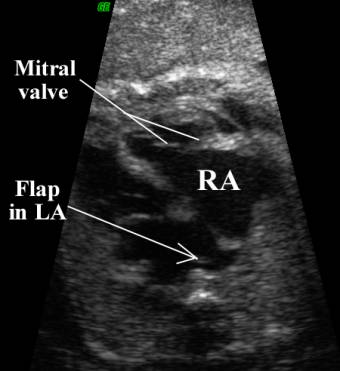

  • Dysplatic posterior leaflet of tricuspid valve.
  • Compressed LV

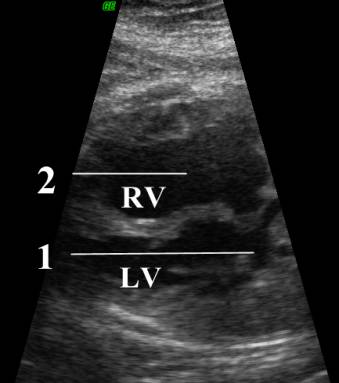

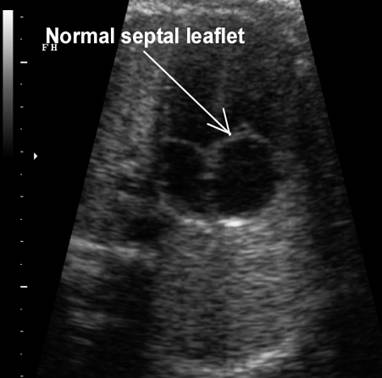

Tricuspid valve dysplasia demonstrates apparent apical displacement of the septal leaflet. The bottom right image demonstrates that the tricuspid valve leaflets are normally positioned and not apically displaced, thus excluding Ebstein’s anomaly.






DIFFERENTIAL DIAGNOSIS



  • Uhl's anomaly
